Buses

Lynx Smart

Overview

Best-in-class passenger comfort

The H-series, 4- cylinder iEGR CRS engine in our Lynx Smart Plus delivers best in class Engine Power and Torque. With the iEGR technology, it offers higher fuel mileage and low cost of maintenance. (No Ad-blue) # The proven, reliable and matching aggregates offers faster turnaround time, low maintenance cost and superior performance. # The TM-31 and TM-43 high capacity A.C. compressor from M/s. Valeo ensures faster cooling for best-in-class passenger comfort.

Benefits for stakeholders

 High capacity A.C. compressor - TM 31 with 7T capacity for 7.8m & 8.3m, TM 43 with 10T capacity for 9.4m. *  Factory fitted A.C. Compressor with dynamically balanced damper pulley.  Tubeless tyres provide better Fuel Mileage and longer Tyre Life.  24V electrical system takes care of A.C. load and other electrical loads seamlessly.  Assured OEM Quality and Warranty.

Technical Specifications

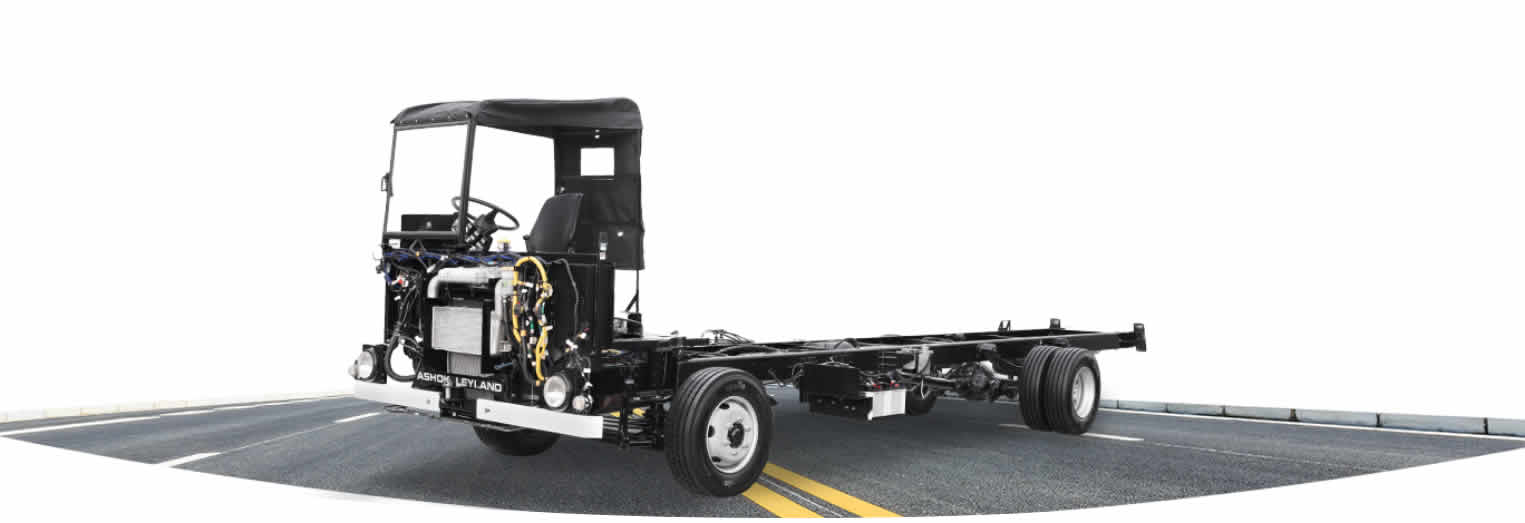

Chassis SpecificationsLynx Smart PLUS
Wheelbase3900 4200 4900
Engine ModelH' Series - 4 cylinder iEGR diesel CRS BS4
Maximun power95kW @ 2400 rpm
Maximum torque450Nm @ 1400-2000 rpm
Clutch330 mm dia. Diaphram type with air assisted hydraulic actuation
Gearbox5 speed Synchromesh overdrive gear box
SuspensionSemi-elliptical Parabolic
Fuel tank115 liters
SteeringPower steering
Braking systemDual circuit , full air 'S' cam brake system
Wheels & tyres (6+1 nos.)235/75 R 17.5 tubeless
Electrical system24V -150Ah battery, 150A alternator
Engine mounted A.C. CompressorTM-31 compressor TM-43 compressor
Bodys SpecificationsLynx Smart PLUS
Wheelbase (mm)3900 4200 4900
StructureOnly chassis
WindowsOnly chassis
DoorsOnly chassis
SeatsOnly chassis
Safety featuresOnly chassis
Wheelbase (mm)3900 4200 4900
Overall width (mm)Only chassis
Overall height (mm)Only chassis
Overall length (mm)Only chassis
GVW (Kgs)Only chassis

Request a Quote

Tell us about your needs for the Lynx Smart and our sales team will contact you.
