Buses

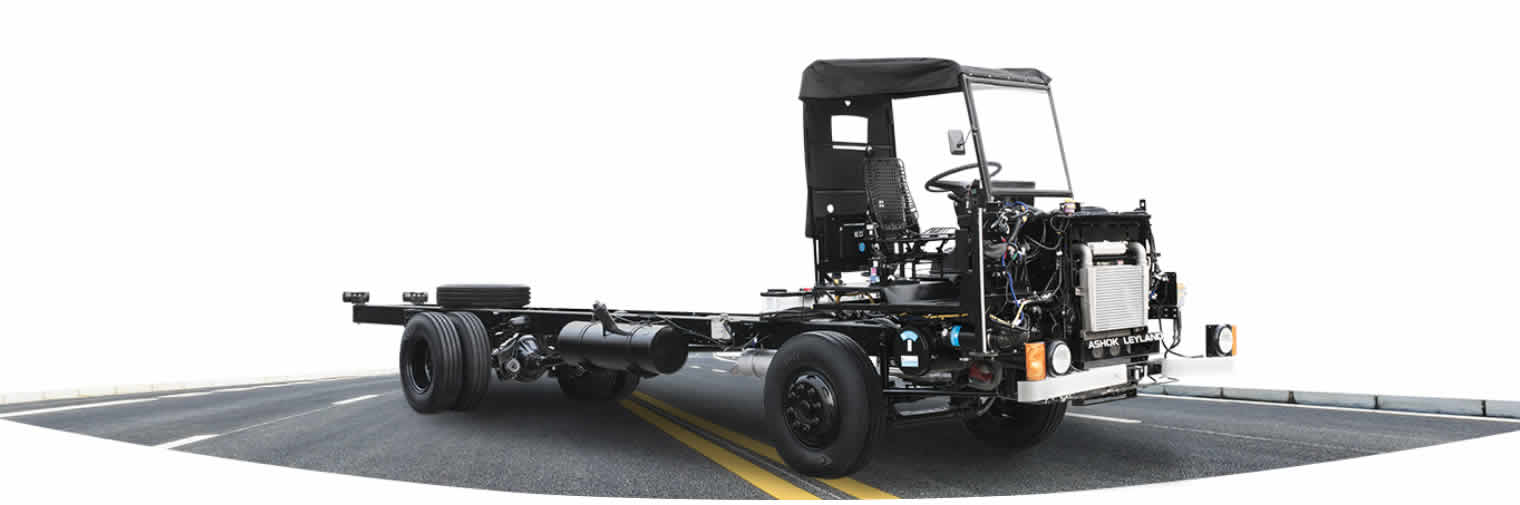

VK 1311

Comfortable ride and better operational economics

The all new VK1311 has been developed based on the invaluable feedback from our customers, for a bus to suit light duty operational needs of Staff, School, and Institution buses. Designed specifically for operating on short distances with high seating capacity, VK1311 is an ideal choice for non A.C. bus in such applications. VK1311 is derived from reliable and trustworthy Viking Platform with an optimized 130HP 4-cylinder engine with iEGR BS4 technology. While retaining the comfort and reliability of Viking platform, VK1311 comes with the proven H-series engine to reduce the operational expenses for the operator. Smart, efficient and economical, VK1311 is the best viable solution for Staff, School, and Institutional commute.

Benefits for stakeholders

Optimized driveline and Radial tyres for lower fuel consumption. * Less frequent gear shift due to wider torque range reduces driver fatigue. * Air assisted hydraulic actuation of clutch reduces driver fatigue. Semi elliptical multi-leaf shackle suspension – easy to maintain in varied road conditions

Technical Specifications

Chassis specificationVK1311
Engine ModelH Series 4 cylinder CRS diesel engine
Emission NormsBS IV with i-EGR
Maximum Power95 kW @ 2400 rpm
Maximum Torque450 Nm @ 1250 - 2000rpm
Clutch330 mm dia. diaphragm clutch, air assisted hydraulic actuation
Transmission6 Speed Synchromesh overdrive gearbox
Front SuspensionSemi Elliptical Multi leaf Spring
Rear SuspensionSemi Elliptical Multi leaf Spring
SteeringIntegral power steering
BrakesFull air dual line with ABS
Electricals24V, 150Ah Battery, 55A Alternator
Tyres9R20 - 14 PR radial
Fuel tank165 Litres
Overall Length, mm10859
Wheelbase, mm5639
Front overhang, mm1912
Rear overhang, mm3308
GVW, Kg15450
Floor Height, mm1150
